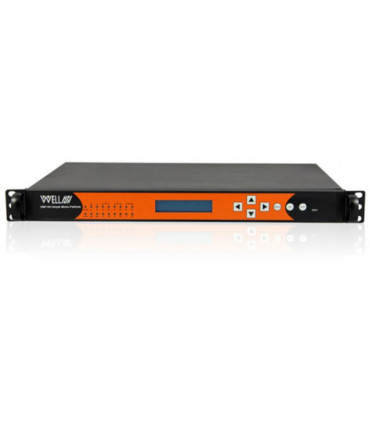

Wellav - SMP100
The SMP100 is Wellav’s high-value product for medium and small sized service operators. It provides proven headend technology in a compact, 1RU chassis. With wide variety of different input and output module options that can be combined as needed, it offers a true, comprehensive video delivery solution.
Whether it is for multiplexing, receiving, encoding, modulating, scrambling or descrambling applications, the SMP100 provides the perfect combination of capacity, flexibility and reliability at an affordable price point.
Women's clothing size
Size | XS | S | M | L |
---|---|---|---|---|
Euro | 32/34 | 36 | 38 | 40 |
USA | 0/2 | 4 | 6 | 8 |
Bust(in) | 31-32 | 33 | 34 | 36 |
Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
Waist(in) | 24-25 | 26 | 27 | 29 |
Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
Hips(in) | 34-35 | 36 | 37 | 39 |
Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Wellav - SMP100
Features
Sharing the same functional modules with DMP900, SMP100 provides:
• Any Input to Any Output capability
• Compact modular design: 1RU with 3 modules and embedded
ASI/IP interface
• Multi-Function: multiplexing, receiving, encoding, transcoding and
modulation scrambling and more.
• SNMP input for remote integration and service
• Future module/function supported
Highly integrated digital TV solution
• This 1RU chassis as 3 module slots with more than 30 different modules
for various functions. The SMP100 chassis includes ASI and IP
inputs/outputs.
Encoding/Transcoding:
• Up to 12 SD &6 HD programs encoding
• Up to 24 SD &6 HD programs transcoding
• Multi-audio/AAC/AC3 encoding
Receiving:
• 12 frequencies of DVB-S/S2/C/T/T2/ISDB-T/ATSC receiving
Modulation/Scrambling:
• Up to 24-QAM modulating
• Up to 12-OFDM modulating
• 8 frequency transmodulation to QAM(DVB-S/S2/T/T2/ISDB-T/ATSC)
• Scrambling module, up to 12 TS streams
Stream Processing:
• Up to 4Gbps processing (approx. 1000 programs)
• Up to 14 ASI ports of multiplexing
• Internal multiplexing or passthrough capabilities
• Support SI and EPG data insertion
• EIT multiplexing(option)
Embedded I/O Interfaces:
• 4 x 100Mbps (2 In and 2 Out) ASI and 1 GbE
TS/IP (real input/output up to 860 Mbps)
interface on chassis
Management Interface:
• Support both Web GUI and client-based NMS
• SNMP compatible
• Configuration importable or exportable for easy
maintenance
• Signal status monitoring
Benefits
Best solution for future evolution of technology
in any operation
With the built-in ASI/IP I/O feature, the SMP100
can be used as a multiplexer without any modules.
Our full and continuously updated product line
ensures your investment savings by offering the
ability to add modules instead of additional headend equipment.
Reduced Rack Space with Energy Savings
SMP100 has an advanced module design which
reduces the rack space required for your headend
system. This design also offers up to a 40% reduction in energy usage.
Flexible distribution with Any-In-Any-Out feature
Wellav offers a variety of Input /Output modules for
that interface and are supported by the SMP100.
This chassis comes with integrated ASI/IP ports on
the chassis and can be easily integrated into a new
or existing video distribution network
