Blackmagic ATEM 4 M/E Advanced Panel
ATEM 4 M/E
Advanced Panel
This large model is ideal for taking full advantage of the ATEM Production Studio 4K features. It offers 4 M/E buses with 40 buttons and 4 independent system LCDs each. It also boasts 24 LCDs to display custom labels for each of the bus buttons.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

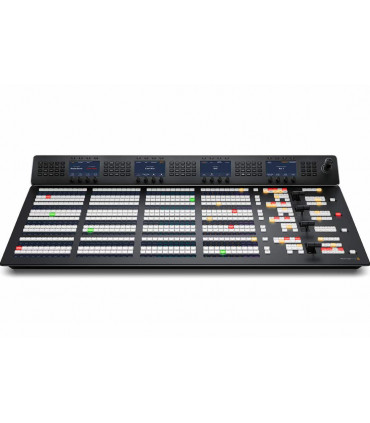

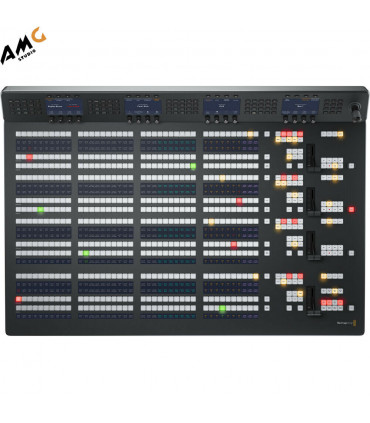

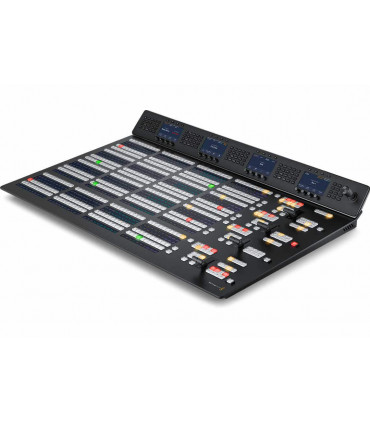

Blackmagic ATEM 4 M/E Advanced Panel
Control panel for ATEM Production and TV Switcher with 4 LC-Displays, 4 crossfade levers (T-Bar) and joystick
ex. for ATEM Constellation 8K, ATEM 4 M/E Broadcast Studio 4K, ATEM 1 M/E, ATEM 2 M/E Production Switcher, ATEM Television Studio
Features:
- 4 physical mixer levels, each with 40 preview and program keys, 40 additional sources can be controlled via a shift button
- The 4 mixer levels can be individually addressed via 4 buttons per physical mixer level
- 4x 40 macro keys
- 4 large LC displays for the effect settings of each physical mixer level on the panel
- Each LC display has 4 associated rotary controls for system / menu control
- Joystick control
- Numeric keypad for quick and easy setting of parameters for crossfades and effects
- With professional buttons and 4 fade levers (T-Bar)
- Dedicated preview transition button to simulate the set transition on the preview output or in the multiviewer
- 4 Ethernet connections
- Two redundant power supply units for uninterrupted safe operation
- 1 year limited warranty
Connections:
- 4x Ethernet 1000 / 100 / 10 Base-T (RJ-45)
- 1x USB type C for firmware updates
- 2x AC In, 100 - 240 V
General:
- Dimensions (WxHxD): 111 x 17,6 x 75,5 cm
- Weight: 26 kg
- Power supply: AC 100 - 240 V
- Power consumption: 250 W
