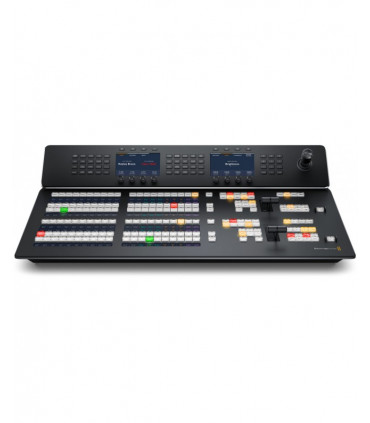

Blackmagic ATEM 2 M/E Advanced Panel
ATEM 2 M/E Advanced Panel
This larger model features 2 M/E rows with 20 input buttons on each row and 2 independent system control LCDs, one for each row. There's 8 LCDs for custom labels and both rows include a select bus.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Blackmagic ATEM 2 M/E Advanced Panel
Control panel for ATEM Production and TV Switcher with 2 LC-Displays, 2 crossfade levers (T-Bar) and joysticK
ex. for ATEM 4 M/E Broadcast Studio 4K, ATEM 1 M/E, ATEM 2 M/E Production Switcher, ATEM Television Studio
The new Blackmagic Design ATEM 2 M/E Advanced Panel offers two M/E rows with 20 input keys each and a separate system control LCD in each row. In addition, each row can control up to four M/E of larger mixers. Both rows and all input keys have integrated LCDs for user defined identifiers. Each row also has its own selection bus.
FEATURES:
- Two physical mixer levels, each with 20 preview and program keys, a shift button can be used to control 20 additional sources
- 4 knobs per physical mixer level allow 4 mixer levels to be addressed, so that 4 M/E switches can also be operated
- 2x 20 macro keys
- 2 large LC displays for the effect settings of each physical mixer level on the panel
- Each LC display has 4 associated rotary controls for system / menu control
- Joystick control
- Numeric keypad for quick and easy setting of parameters for crossfades and effects
- With professional buttons and 2 fade levers (T-Bar)
- Dedicated preview transition button to simulate the set transition on the preview output or in the multiviewer
- 4 Ethernet connections
- Two redundant power supply units for uninterrupted safe operation
- 1 year limited warranty

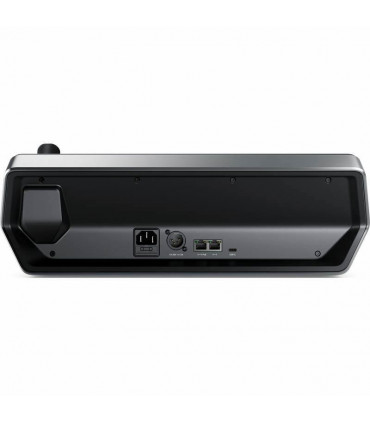

Connections:
- 4x Ethernet 1000 / 100 / 10 Base-T (RJ-45)
- 1x USB type C for firmware updates
- 2x AC In, 100 - 240 V
General:
- Dimensions (WxHxD): 72,5 x 16,6 x 48,5 cm
- Weight: 11 kg
- Power supply: AC 100 - 240 V
- Power consumption: 150 W
