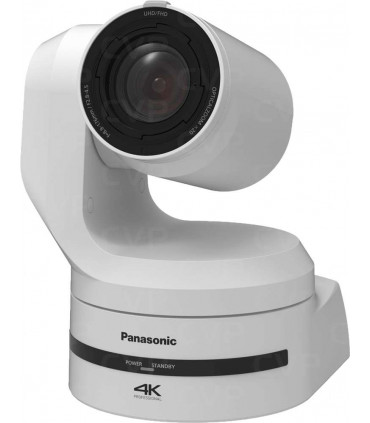

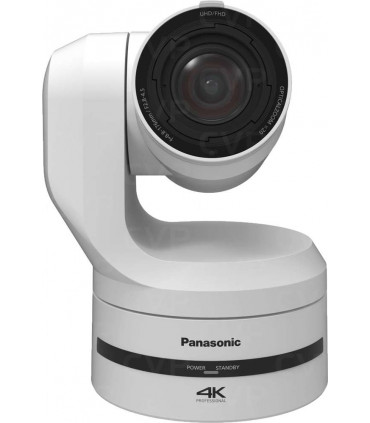

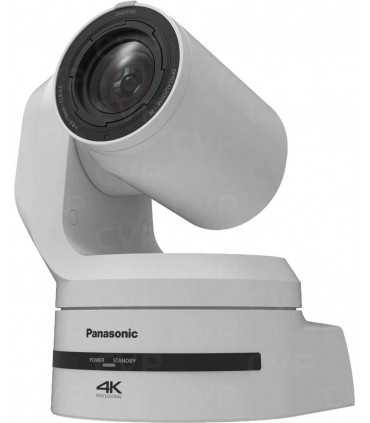

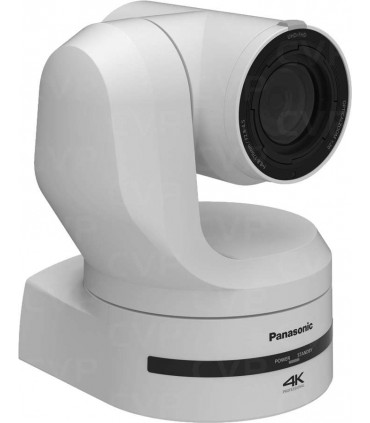

Panasonic AW-UE150 PTZ
The AW-UE150 is a key model in Panasonic's full range of professional PTZ cameras. Equipped with a large 1-type MOS sensor, this next-generation PTZ camera supports high-quality 4K/UHD 60p video, features a 75.1-degree viewing angle, 20x optical zoom, and supports versatile outputs including 12G-SDI, HDMI, fiber optic, and IP. Simultaneous 4K/HD operation makes this powerful PTZ camera ideal for those looking to future-proof their system.
Women's clothing size
Size | XS | S | M | L |
---|---|---|---|---|
Euro | 32/34 | 36 | 38 | 40 |
USA | 0/2 | 4 | 6 | 8 |
Bust(in) | 31-32 | 33 | 34 | 36 |
Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
Waist(in) | 24-25 | 26 | 27 | 29 |
Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
Hips(in) | 34-35 | 36 | 37 | 39 |
Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
AW-UE150 4K PTZ
Optical filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as "Night mode")
Focusing Switching from automatic to manual
Focusing distance Full zoom range: 1000 mm (3.3 feet)
Wide end: 100 mm (0.33 feet)
1MOS color separation optical system
Standard sensitivity F9, 2000 lx (When normal mode is selected)
MINIMUM ILLUMINATION 2 lx (F2.8, 59.94p, 50IRE, 42 dB, no buildup)
S/N 60 dB or more
Horizontal resolution 1600 TV lines Typ (Center zone)
Get Auto selection, 0 dB to 36 dB*2
Super Gain function equipped: +37 dB to 42 dB
Mix of Frames*3 0dB, 6dB, 12dB, 18dB, 24dB
Electronic Shutter Speed 59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p
1/24, 1/48 , 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i
1/60, 1/100 , 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p
1/25, 1/50, 1/60, 1/100, 1 /120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchronized scanning 59.94p/59.94i: 60.00 Hz to 7200 Hz
29.97p: 30.00 Hz to 7200 Hz
23.98p/24p: 24.00 Hz to 7200 Hz
50p/50i: 50.00 Hz to 7200 Hz
25p: 25.00 Hz to 7200 Hz
HD Gamma / FILMLIKE1 / FILMLIKE2 / FILMLIKE3 / FILM RECORDING / VIDEO RECORDING / HLG
ATW WHITE BALANCE: 3200K, 5600K
ATW Speed: Normal / Slow / Fast
AWB: AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Chrominance amount variability OFF, from -99% to 99%.
Scene files Scene1, Scene2, Scene3, Scene4
4K output format
2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
HD
1080/59.94p, 1080/50p, 1080/29.97p*4 , 720/59.94p, 720/50p
Synchronization system Internal/external synchronization (BBS/three-level synchronization)
INPUT
DC 12 V IN, G/L IN (BNC) input connector
BBS (Black Burst Sync), three-level synchronization supported
PRODUCTION
HDMI VIDEO OUTPUT
HDMI 2.0 standard
4:2:2/10bit
HDCP is not supported.
・Viera Link is not supported.
12G-SDI OUT
SMPTE 2082-1 standard / 75 Ω (BNC x 1)
3G-SDI OUT
SMPTE292 / 75 Ω (BNC x 1)
A-Level/B-Level supported
MONI OUT
SMPTE292 / 75 Ω (BNC x 1)
Fiber Optic
SFP+ standard
Single fiber
・The signal sent is the same as 12G-SDI OUT.
・This unit does not support input of optical signals.
INPUT OUTPUT ----
LAN input/output connector
LAN connector for IP control (RJ-45)
RS-422 INPUT
RS-422 CONTROL (RJ-45)
MIC/LINE input
φ3.5mm stereo mini jack
Input impedance: High impedance
MIC input Microphone
Supported: Stereo microphone (plug-in power supply, power on/off via menu)
Supply voltage: 2.5 V ± 0.5 V
Microphone input sensitivity: approx. -40 dBV ± 3 dBV
(0 dB=1 V/Pa, 1 kHz)
・During LINE input
Input level: approx. -10 dBV ±3 dBV
Tilting head -
Camera control/head tilt IP connection cable
・LAN cable*6*7: (category 5e or above, straight/crossed cable)
max. 100 m (328 ft.)
AW protocol connection cable
LAN*6 (Category 5e or higher, straight cable)
1000 m (3280 ft) or less
Installation method Standalone (desktop) or suspended (hanging)*8
Pan/Tilt Operating Speed Minimum speed 0.08°/s
Maximum speed 60°/s or more*9
Maximum speed is 180°/s in high speed mode
Pan Range ±175°
Tilt Range -30° to 210°*10
Silence NC35 or less
Supported Operating Systems and Web Browsers 11 -
Supported operating systems and web browsers Windows
Microsoft(R) Windows(R) 7, 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Image streaming modes JPEG (MJPEG), H.264, H.265
Image resolution 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission Setting (JPEG) Frame Rate: Maximum 30fps
Image Quality (Fine/Normal)
Image transmission setting (H.264) ■Frame Rate
[60Hz]
5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)
[50Hz]
5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
Maximum bit rate
HD: 512kbps/768kbps/1024kbps/ 1536Kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12280kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps
UHD: 12800Kbps / 25600Kbps / 51700kbps / 76800Kbps
Image transmission setting (H.265) ■Image transmission type:
Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
■Frame Rate
[60Hz] 30fps
[50Hz] 25fps
