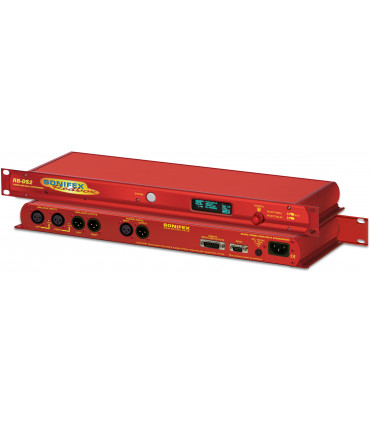

RB-DS2 Stereo Delay Synchroniser Sonifex
RB-DS2 Stereo Delay
The RB-DS2 is a stereo audio delay synchroniser used for resynchronising audio to video following delay processes such as standards conversion, transmission delay, logo insertion, video aspect ratio conversion and network delays. It can be used for fixed installations to correct a permanent audio delay, or on an intermittent basis to provide occasional correction, for example for live links. Accepting digital audio signals up to 96kHz, 24 bit, the sonic quality of the RB-DS2 is superb and silent switching is used to provide the smoothest, cleanest audio delay available.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
RB-DS2 Stereo Delay
Technical Specification For RB-DS2
A/D Specification
Maximum Input Level: +28dBu
Input Impedance: > 10kΩ bridging
Analogue & Digital Input Levels: Selectable +12dBu, +18dBu, +24dBu for FSD
Analogue Pre-set Input Gain Range: Adjustable 3dB loss to 3dB gain (L & R adjust)
Signal to Noise: Better than -101dBFS (RMS A-weighted at 24bit)
Dynamic Range: > 110dB
Distortion & Noise: > 96dB THD + N at 1kHz
D/A Specification
Maximum Output Level: +24dBu
Output Impedance: < 50Ω
Dynamic Range: > 100dB
Analogue Output Gain Range: Selectable -6dBu to +24dBu output level, ref FSD
Sampling Frequency: Selectable 32kHz, 44.1kHz, 48kHz 64kHz, 88.2kHz or 96kHz,
Sample Width: Selectable 16bit or 24bit
Channels: Stereo or dual mono
Format (Fields & Frames): PAL, NTSC
Delay Units: Samples, fields, frames, milliseconds, hh:mm:ss, (with CF expansion)
Maximum Delay: 10.5 seconds @ 96kHz, 24bit, stereo (excluding memory expansion)

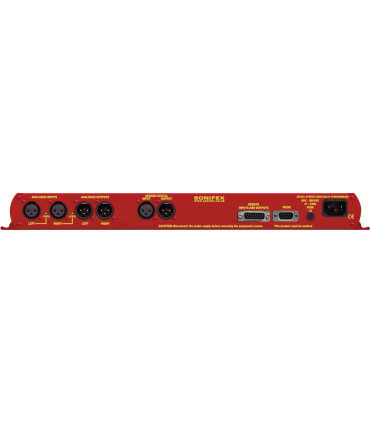

Rear Panel Connections
Analogue Inputs: 2 x XLR 3 pin female (balanced) (L & R
Analogue Outputs: 2 x XLR 3 pin male (balanced) (L & R)
Digital Inputs: 1 x AES/EBU XLR 3 pin female
Digital Outputs: 1 x AES/EBU XLR 3 pin male
Remote I/O Port: 15-way ‘D’-type plug, 8 GPI inputs, 4 GPI outputs
Serial Comms Port: 9-way ‘D’-type plug
Memory Expansion: Internal Compact Flash™ storage card supporting up to 2GB. CF cards must be PIO Type 4 or higher.
Mains Input: Filtered IEC, continuously rated 85-264 VAC, 47-63Hz, fused, 60W peak, 30W
average
Fuse Rating: Anti-surge fuse 2A 20 x 5mm

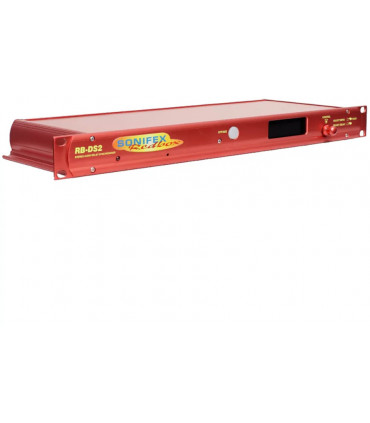

Front Panel Controls
Display: Vacuum fluorescent display
System Navigation: Rotary selector with integral push-switch
Audio Bypass: Via push-button
Equipment Type
RB-DS2: Stereo delay synchroniser & time-zone delay
Physical Specification
Dimensions (Raw): 48cm (W) x 15.8cm (D *) x 4.2cm (H) (1U)
19” (W) x 6.2” (D*) x 1.7” (H) (1U)
Dimensions (Boxed): 59cm (W) x 27.5cm (D*) x 11cm (H)
23.2” (W) x 10.8” (D*) x 4.3” (H)
Weight Nett: 1.6kg Gross: 2.3kg
