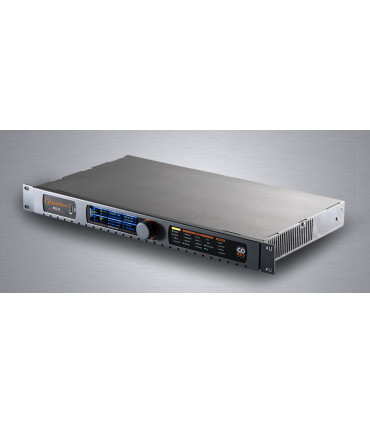

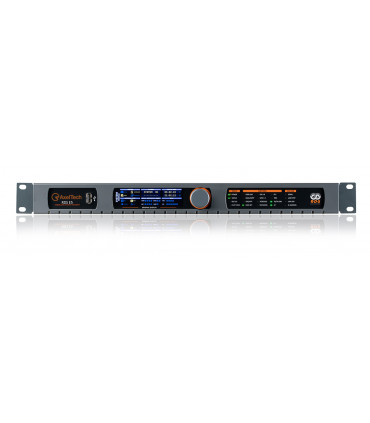

AXEL RDS-E5 ENCODER
RDS-E5 AXEL
Generality
Main power supply 90-260Vac 50/60Hz. 15W;
Green device - 15W only;
480x128 color graphic display (RDS E5 only);
Status led panel with 40 leds;
Rack 1u 19" - stainless steel;
Redundant PSU (available as option);
High immunity to strong RF fields, designed to be installed in high power TX sites;
Fully digital - No trimmers

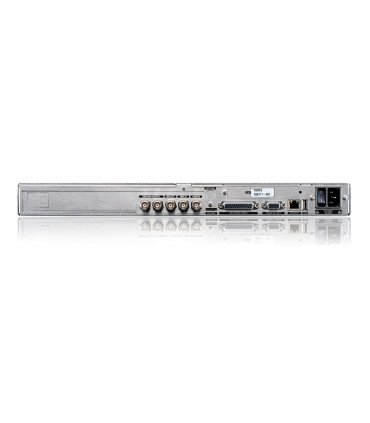

Input and Output Sections
Dual MPX+RDS outputs with digital level setting;
RDS output;
HW Bypass on RDS+MPX outputs (MPX to Out 1&2);
1 MPX input (wide band);
1 Sync 19kHz input to synchronize the internal RDS.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
RDS-E5 AXEL
RDS section encoder
RDS encoder fully compliant with UECP EBU SPB490 v7.05, CENELEC (Europe) and NRSC (America);
Full support for all RDS services, static and dynamic;
UEPC ports (2 Serial, 4 TCPIP, 4 UDP);
n.8 Data Sets;
n.10 EON + main PS for each Data Set;
Integrated RDS decoder;
FM Tuner with RDS decoder (as option);
Data Set switch managed by UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE/GPI;
Easy to interface to any kind of automation system (UECP/SNMP/REST/HTTP/ASCII PARSER/TXT FILE);
RDS can get data from radio automation system (PS/RT/RT+/TA/MS) autonomously;
Easy configuration of RDS page;
RDS 2.0 ready.
GUI and Monitoring
Fully programmable via Web GUI, all browsers are supported;
Simple and intuitive GUI, supported by all devices (PC, notebook, tablet, smartphone, etc.);
Easy and configurable GUI;
Multi-user web GUI;
Map with device geolocation (satellite or fixed RX coordinates are required);
Web GUI with information bubbles;
FM tuner monitoring (as an option);
RDS group data analyzer;
GUI with LED measurement bars.

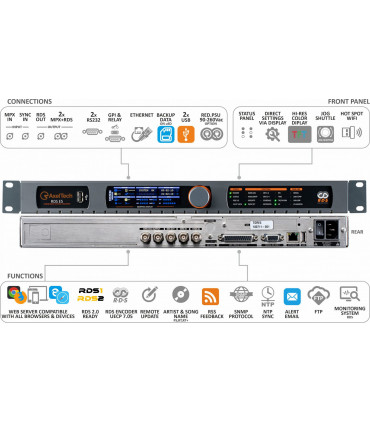

Communications and Management
Ethernet/USB/RS232/GPIO connections;
Easy WiFi access - USB WiFi hot spot to directly connect a wireless device to RDS E3 and RDS E5;
SNMP V2c;
Ability to set up to 3 NTP servers (V1, V2, V3, V4);
Ability to send e-mail to 4 receivers and set up 3 different SMPT servers;
IPV4 and IPV6 support (3 IPV4 and 3 IPV6 addresses);
N°2 RS232 for UECP commands;
6 GPI and 4 Relay Out (all GPIO are fully programmable from the GUI);
Support HTTP, FTP, SNMP, SMTP, UDP, TCP;
Alarms via : TRAP (SNMP), e-mail (SMTP), GPO, HTTP;
External GPS support (time, date and geolocation);
uSD card for clone function, for maintenance and easy replacement of faulty unit;
Configuration import and export function;
PRESET, with load/save/import/export functions;
24/7 logs with export function;
6 levels of access rights management;
Easy configuration page setup with information connection diagrams;
REST API available to manage the device;
ASCII PARSER interface for easy command line setup;
SAMBA SHARE function to connect and get data from an external PC;
Multi-user simultaneous access.
