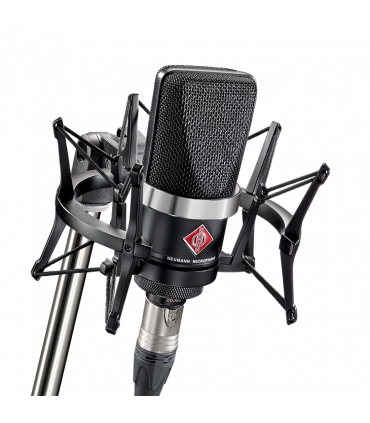

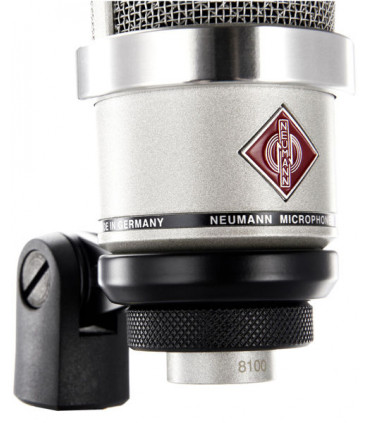

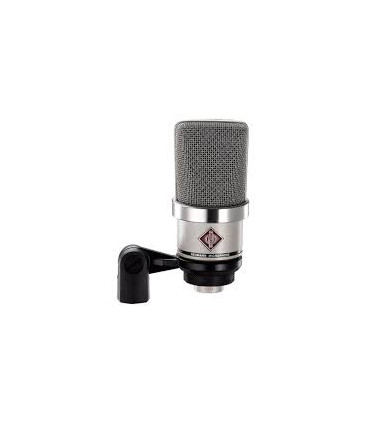

Microphone Neumann TLM 102
WIDE CAPSULE CARDIOID CONDENSER MICROPHONE
The TLM 102 condenser microphone with wide diaphragm defines a new generation of studio products by Neumann. Specifically designed to reproduce sung voice, speech and all applications in the broadcast field, it is also an ideal system for recording sounds from particularly dynamic instruments with an aggressive and generous sound, such as percussion, drums, wind instruments and amplified instruments. From a technical point of view the TLM 102 is a condenser microphone with a wide diaphragm, cardioid polar diagram, directional, pressure gradient transducer, compact size - smaller than its brother TLM 103 - but with classic Neumann characteristics.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
INTELLIGENT ASPECTS - INTELLIGENT ENGINEERING
The TLM 102 sounds as smart as it sounds! Its newly developed large diaphragm condenser capsule has all the qualities that have made Neumann microphones the first choice in recording studios around the world: clear, concentrated sound with superb definition. Thanks to its remarkably linear response over the entire midrange, the TLM 102 is able to capture the authentic character of any voice or instrument, enhanced by a slight lift of about 10 kHz for silky highs. The TLM 102 also has a beautiful background, enhanced by the well controlled proximity effect of a large diaphragm cardioid capsule. A joy for every singer!
The technical performance of the TLM 102 is also impressive. Its noise of only 12 dB-A is much lower than ambient noise even in a very quiet room. At the same time, the TLM 102 can handle extreme sound pressure levels of up to 144 dB without distortion. As a member of the TLM range, the TLM 102 is equipped with a transformerless output stage, which means: powerful bass, even at the highest signal levels, and very direct sound without transmission losses.
Technical specifications:
- Transducer: Pressure gradient

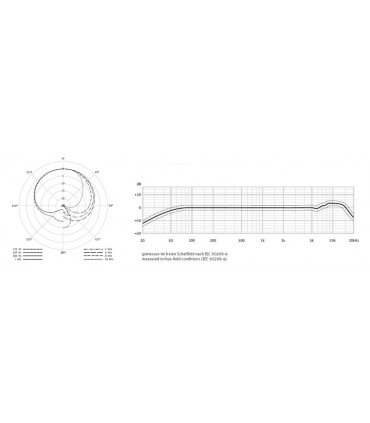

- Directivity: Cardioid
- Output circuit: Transformerless
- Bandwidth: 20Hz - 20kHz
- Sensitivity: 21 mV/Pa
- Noise: 12 dBA, 21 dB CCIR
- S/N ratio: 82 dBA, 73 dB CCIR
- SPL max: 144dB with THD <0.5%
- Nominal impedance: 50 Ohm
- Nominal load impedance: 1000 Ohm
- Maximum output voltage: 13dBu
- Supply voltage: 48V ± 4V
- Absorption: 3.5mA

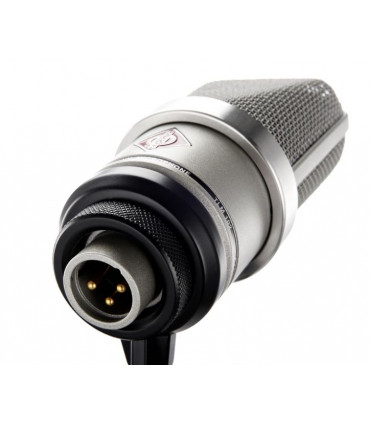

- Connector: XLR-3 F
- Colour: Silver
- Included accessories: SG2 swivel bracket included
- Dimensions: D52mm x 116mm
- Weight: 0.260kg
