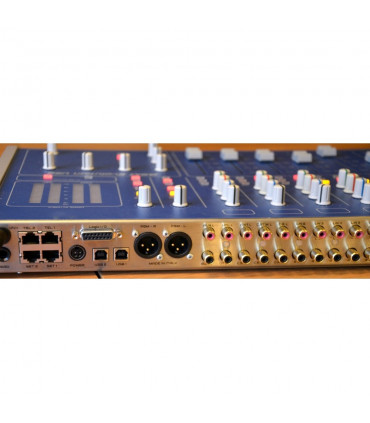

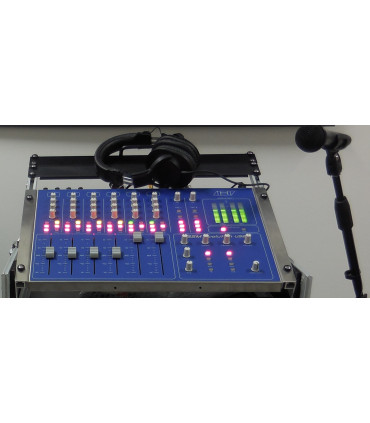

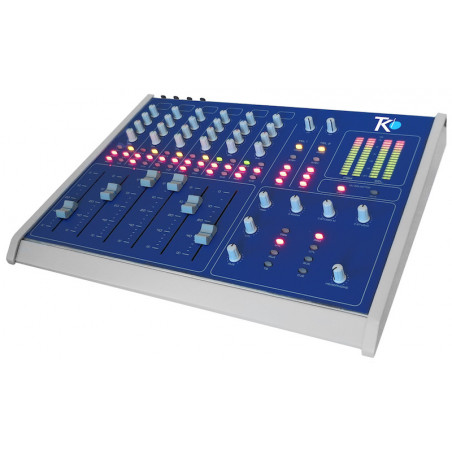

AEV BSM Evolution USB Compact On Air Console
AEV Compact On Air Console BSM Evolution USB
Compact consol with 6 Input double switchable channels, two USB audio interface and two telephone hybrids, designed specifically for broadcast applications.
General overview:
INPUT
- 4 balanced mono micro inputand
- 6 stereo line
- USB audio interface
- Tone control (All inputs)
OUTPUT
- Master stereo PGM
- Master stereo UTL
- Master stereo AUX
Auxiliary
- 2 telephone hybrid internally integrated
- Recorder stereo output On USB 1(PGM) and USB 2 (UTL)
- Control Room stereo output
- Control Studio stereo output
- Control studio mute stereo output
- 1 headphone output
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
AEV BSM Evolution
Other features
- Led meter fix for monitoring PGM, UTL and PFL levels
- Led meter switchable for monitoring Aux, UTL and CUE levels
- 100 mm ALPS faders
- Phantom power activable on each microphone inputs
- configurer fader start on microphone inputs
- Logic I/O port
- rackmountable 19?
TECHNICAL SPECIFICATIONS
Microphone Inputs
Input configuration Electronically balanced
Input Impedance 200 ?
Sensitivity Level Range Adjustable from -70 ÷-40 dBu (Trimmer adj.)
Input Level Range ±12 dBu
Maximum Input Level - 30 dBu
Phantom Supply 48 Vdc selectable
Fader 100 mm
Connector XLR Female
Line Inputs
Input configuration unbalanced
Input Impedance 10 K ?
Input Level Range ±12 dBu
Headroom + 18 dBu
Fader control 100 mm
Connector pins RCA
Telephone Hybrid
Input configuration Opto-coupled
Input impedance 600 ? Bal
Line Compensation Automatically (max 5 Km)
Rx Level Range ±12 dBu
Frequency response 300 Hz ÷ 3400 Hz (-2 dB) ; 300 Hz ÷ 3400 Hz (-1.5 dB)
Distortion < 1.5 %
Noise -60 dB.
Analog Outputs
PGM Output configuration Electronically balanced
Output Impedance 100 ?
PGM Output Level Range -12 ÷ +12 dBu
Connector XLR male
UTL/AUX Output configuration unbalanced
UTL/AUX Output Level Range -12 ÷ +12 dBu
Connectors pins RCA
C. Studio & C.Room configuration unbalanced
Control Studio Mut.Output Lev. - 12÷ +12 dBu
Connectors pins RCA
C Room Mut.Output Lev. - 12÷ +12 dBu
Connectors pins RCA
C Studio Output Lev. - 12÷ +12 dBu
Connectors pins RCA
Headphones
configuration Type Stereo unbalanced (C.Room no Muted)
Output Impedance 50 ?
Connector JACK 6,3 mm
Logic I/O
Configuration Optic solid state relay
Max Voltage 50 Vdc/ac
Max Current 100 mA
Connector DSUB 15 pole female
USB Port 2 x USB 2.0 interface
Dimensions 484 x 310 x 45 mm Weight: 5 Kg
