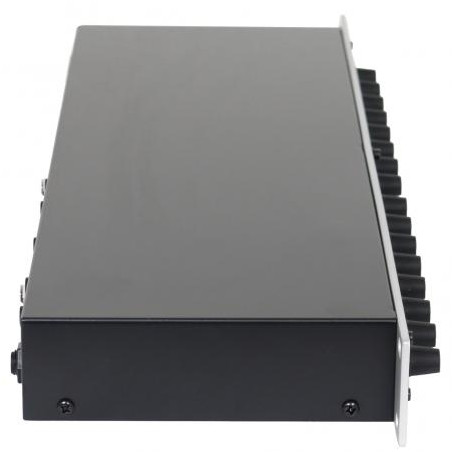

Audio Processor DBX 166XS
Compressor / limiter / gate able to guarantee a high dynamic control offered a crystal clear sound.
Thanks to the compression chain, and the patented Overeasy ® and AutoDynamic ™ technology, it will be possible to adjust the dynamic levels, add support to the guitars or the body to the percussions, the perfectly controlled peak levels, thanks to the PeakStopchi® technology, non-events connected in waterfall.
Stereo or dual-mono operating modes, quality XLR connectors, gain adjustment and backlit switches complete the features of the 166xs.
Compression Expander / Gate Limiter Range of PeakStop® thresholds from 0 dBu to +20 dBu System
Limited special offer
€284.40
No tax
€316.00
-10%
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
Processore Audio DBX 166XS
Love0
Add to compare0
Add to wishlist
FEATURES
inputs
- Connectors: 1/4 "TRS, XLR female (hot pin 2)
- Type: balanced / unbalanced, RF compliant
- Impedance:> 50kOhm balanced,> 25kOhm unbalanced
- Maximum level:> + 24dBu
Outputs
- Connectors: 1/4 "TRS, XLR female (hot pin 2)
- Type: balanced / unbalanced, RF described
- Impedance: 120 Ohm balanced,> 60 Ohm unbalanced
- Max level:> + 21dBu balanced / unbalanced (> + 18dBm at 600Ohm)
- SideChain
- Connections: 1/4 "TRS headphones, Normalized
- Impedance: Tip> 10kOhm (Input), Ring 2kOhm (Output)
- Max level ::> + 20dBu (tip / input),> + 20dBu (ring / output)
- compression
- Threshold range: from -40 dBu to + 20 dBu
- Mode selector: OverEasy® or hard knee
- Ratio: variable; 1: 1 to infinity: 1; 60 dB max
- Time act: variable depending on the program; From 3ms to 340ms for 15 dB of gain.
- Release time: variable depending on the program; 200dB / Sec at 3dB / Sec
- Expander / Gate
- Threshold range: OFF at + 15dBu
- Expansion ratio: 10: 1
- Maximum depth:> 60 dB
- Attack time: <500 µSec
- Limit PeakStop®
- Threshold range from 0 dBu to + 20 dBu
System
- Frequency response: 20Hz - 20kHz; + 0 / -0.5 dB
- Noise: <-90dBu, from 22Hz to 22kHz
- THD + N: typically <0.04%
- IMD SMPTE: <0.08% @ + 10dBu (15dB gain reduction)
- Dynamic Range:> 115 dB,
- Crosstalk <-80dB, from 20Hz to 20kHz
- CMRR:> 40 dB, typically> 55 dB at 1 kHz
- Stereo coupling: True RMS Power Summing
Power supply Voltage
- 100 V AC at 50 / 60Hz;
- 120 V AC at 60 Hz;
- 230 V AC at 50/60 Hz
Maximum consumption: 15 W.
Operating temperature: from 0 ° C to 45 ° C
Dimensions (WxHxD): 48.26 x 17.15 x 4.45
Weight: 2.29 kg
