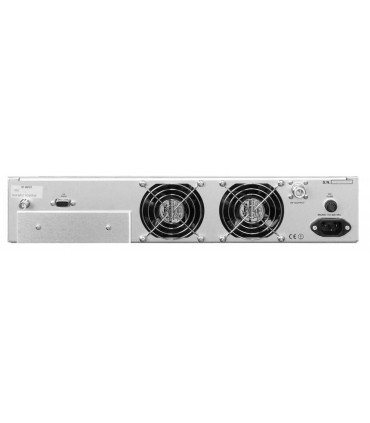

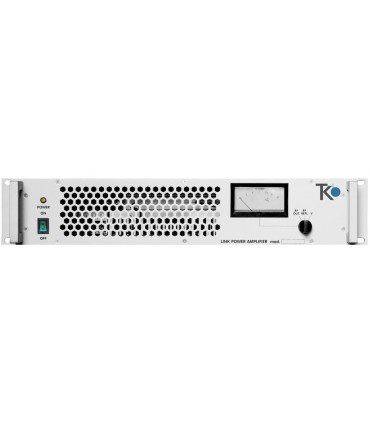

STL Studio Amplifier Link TK-STL-A3-50-A 820-960MHz
Limited special offer
€1,805.00
No tax
€1,900.00
-5%
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
TK-STL-A3-50-A
Brand:
Love1
Add to compare0
Add to wishlist
STL-A3-50
STL Link Amplifier
Band 820-960MHz 50W
Teko Broadcast Link Amplifiers, strength the STL Link Transmitter Signal when cover very long distance is necessary-A820-960MHz-50W-Immediate delivery.
DESCRIPTION: Designed to transport audio signals from the studio to the transmission sites maintaining high quality.
These radio links were specifically designed to comply with the latest international standards and the requirements of advanced broadcasters, meeting tighter specifications than usually required, at an affordable cost.
Great care was spent into producing a Hi-Fi-quality modulated signal, with low residual noise and distortion. The RF signal is also free from spurious and harmonic components to a higher degree than required by CCIR, European, USA and most other national standards.
| Parameter | Value |
|---|---|
| FREQUENCY RANGE: | 170 - 960 MHz in 20MHz sub-bands |
| MODULATION: | FM |
| INPUT POWER: | 10 W Max |
| POWER OUT: | 50W (ASG), 100W(ASG-H), 300W (ASG-UH) |
| SPURIOUS EMISSION: | < -80dB |
| ARMONIC EMISSION: | < -75 dB |
| ASYNCRONOUS AM S/N Ratio: | >65 dB ref 100% AM 400Hz |
| SYNCRONOUS AM S/N Ratio: | >60 dB ref FM 75KHz 400Hz |
| RF INPUT CONNECTOR: | N or BNC FEMALE |
| RF OUT CONNECTOR: | N - FEMALE |
| OP. TEMPERATURE: | –10 - +45°C |
| MAXIMUM UMIDITY: | 90% non condensing |
| AC SUPPLY: | 110/240 VAC |
| DIMENSION: | 2 unit rack 19”, 430mm depth |
| WEIGHT: | 10 Kg (ASG) 12 Kg (ASG-H) 14KG (UH) |
