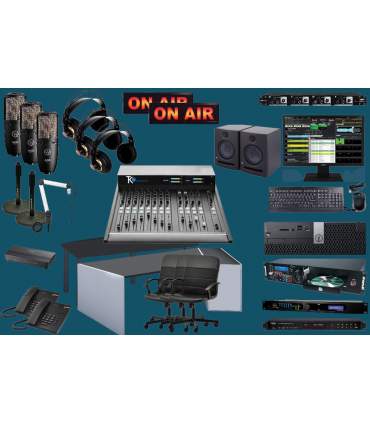

PACKAGE ON-AIR STUDIO SMART

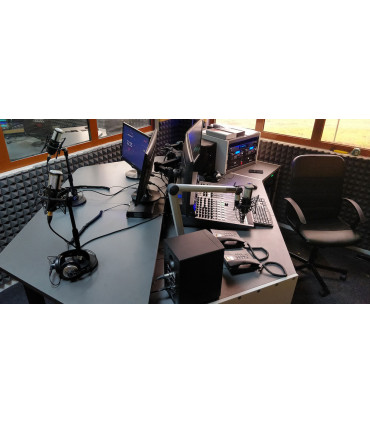

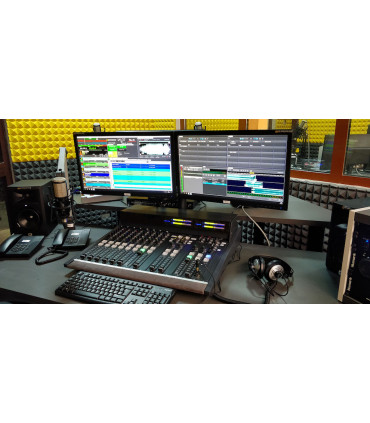

The idea of Smart Studio is to provide a studio solution that is both on air and in production. Both studios are networked, so the production studio can be used as an over-the-air backup via a mute detector and pass-through switch. The all-in-one automation station for 24 / 24 programs includes all the modules needed to operate one or more radios: playout, broadcast, business planning, recording, editing and post-production.

All equipment is of the highest quality, manufactured by the best brands in the broadcasting market. A CD player with USB and MP3 is included. A durable, scratch-resistant desk with 19" rack cabinets built to house all your equipment, ideal for 24-hour, round-the-clock streaming use. Includes pre-assembly service, cables, connections and one year of remote support. is available to you for installation and training.

COMPONENTS

AKG K240: Studio stereo headphones, semi-open, 55 ohms, 25000 Hz - 15 Hz, max. input level: 200 mW

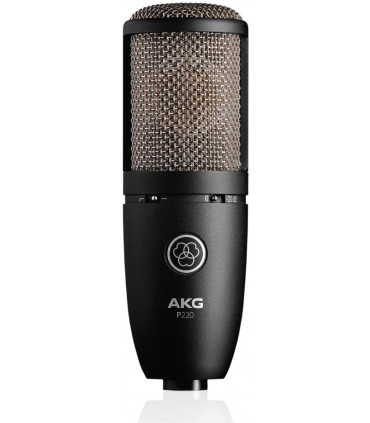

AKG P220: Studio microphone, cardioid condenser element, spider damper, low-frequency roll-off, 20dB pad

ALCATEL TEMPORIS 180: Black phone with incoming call indicator light, last number redial, wall mount, message waiting indicator, adjustable headset volume: 5 levels.

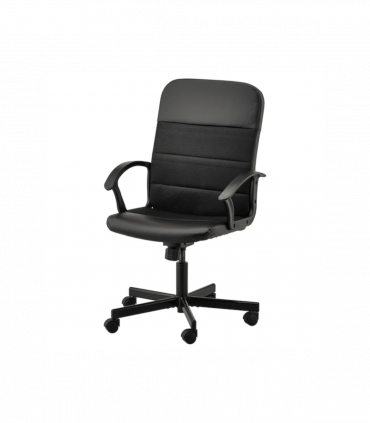

Chair for broadcast station, technicians and/or guests.

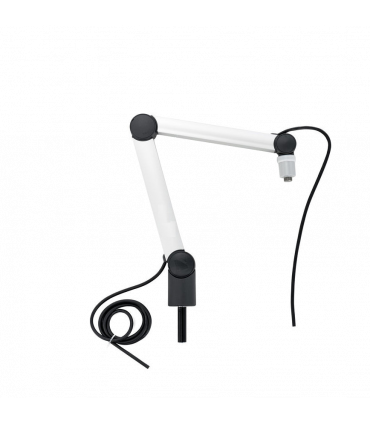

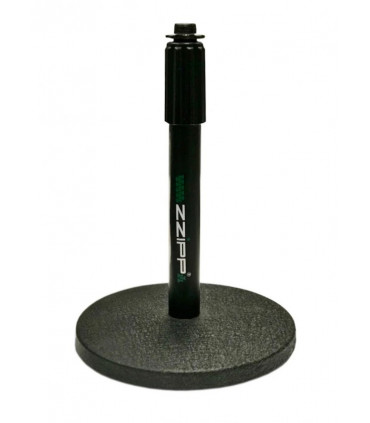

 Desktop or adjustable microphone stand

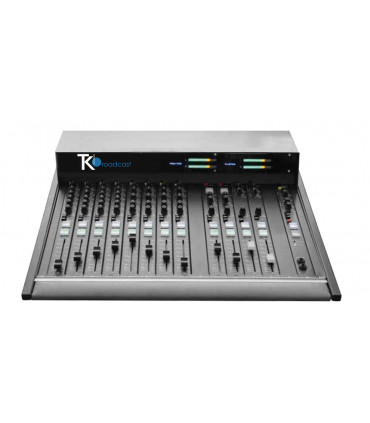

DM-M16: Broadcast mixer with: 8 IN, 6 MIC / LINE, 2 HIBRYD, 1 USB, 1 BLUETOOTH. Digital display with clock and timer. 6 OUT. Replicate. External power supply.

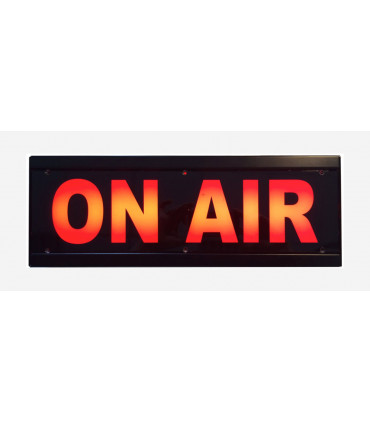

DM ON AIR LIGHT: Professional ON AIR light for broadcasting installations. Laser-cut polycarbonate graphic panel. RJ45 connection, operation and output voltage 12 Vdc. Current 330 mA. Input voltage 100-240Vac. Product dimensions: H 38,3 cm D 4,2 cm H 13,5 cm 1 Kg.

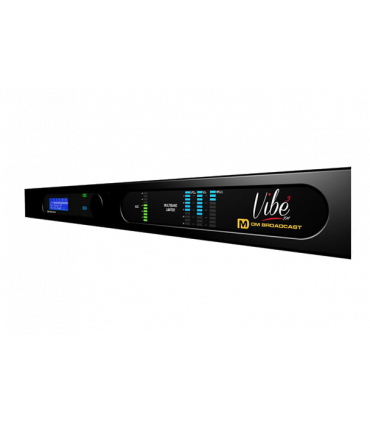

DM DIVE 3 FM: 3-band audio processor with built-in RDS encoder Stereo generator. Graphic display, incremental encoder. Stereo separation 60dB 30-15 KHz, RDS 25 PS, 25 radio text (64 sources), 24 AF lists. Inputs: SCA, analogue on balanced XLR.

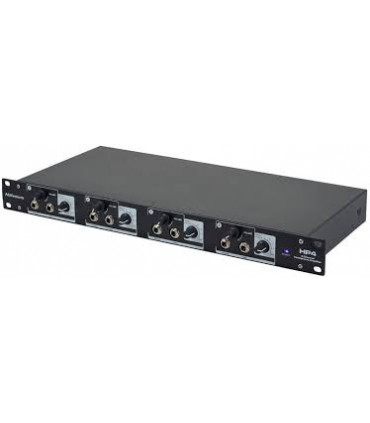

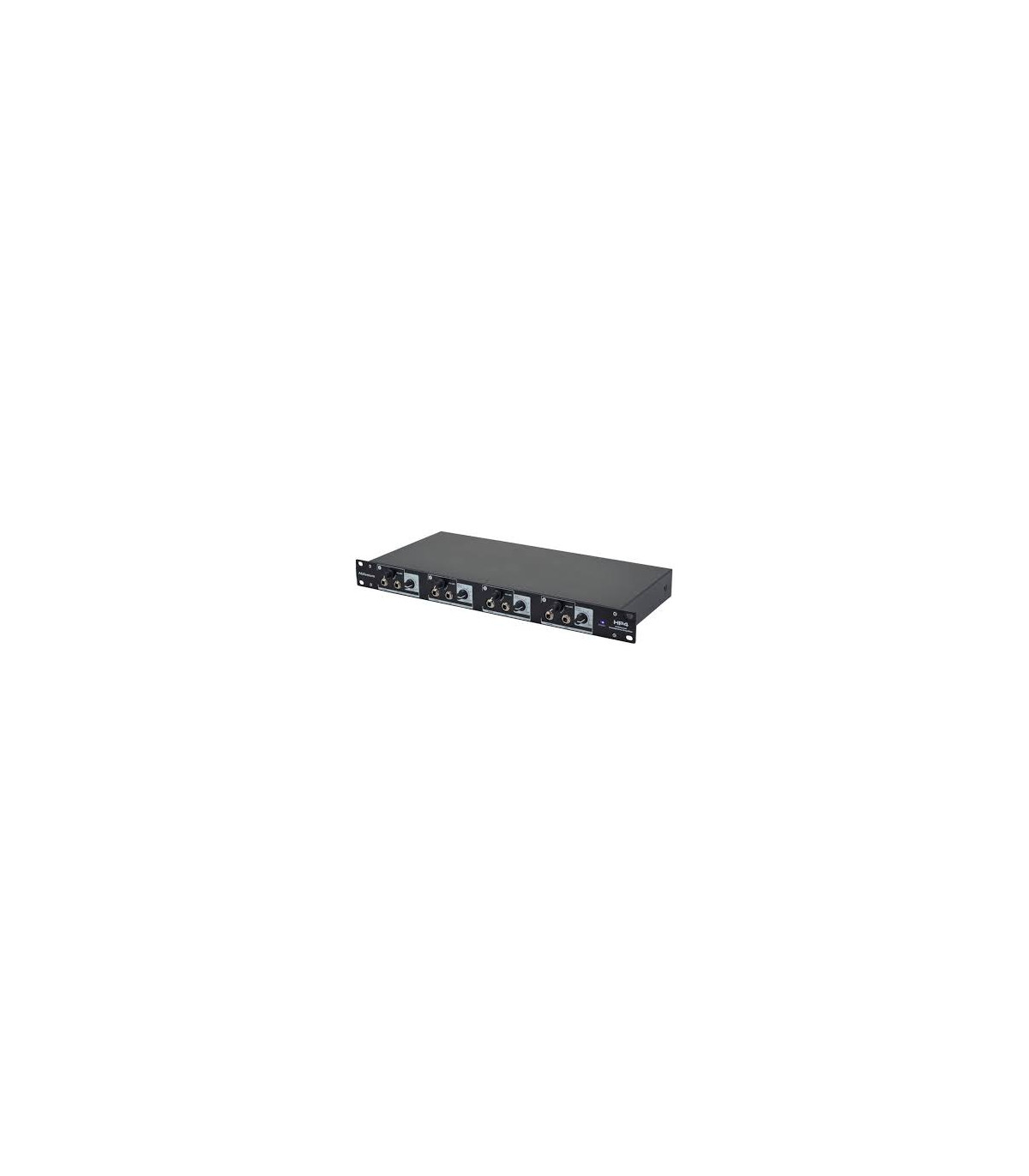

4 independent stereo inputs with asymmetrical jack sockets; Separate volume control for each channel; Easily expandable: up to 4 devices can be operated together; Internal shielded dual regulation power supply with voltage selector for 115V / 60Hz or 230V / 50Hz; 19", 1U

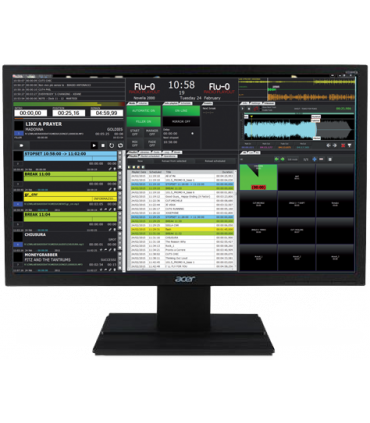

ACER: 23.6" TN Full HD 1920x1080 LED monitor screen, 5 ms, 1000: 1, 250 cd / m2, D-Sub, port DVI I / O VGA DVI-D HDMI

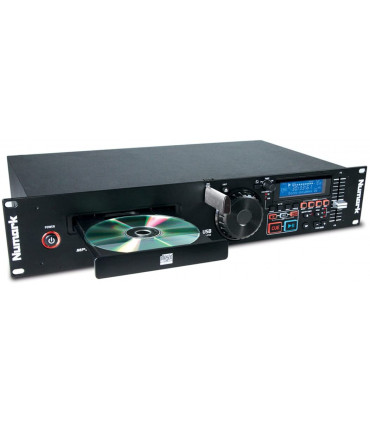

NUMARK SINGLE MP3: "WAW / MP3 CD player with USB, search selector / navigation, playback start with automatic fader

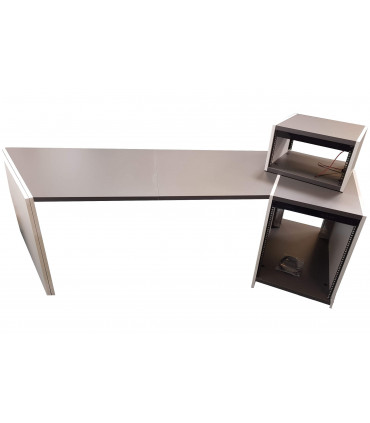

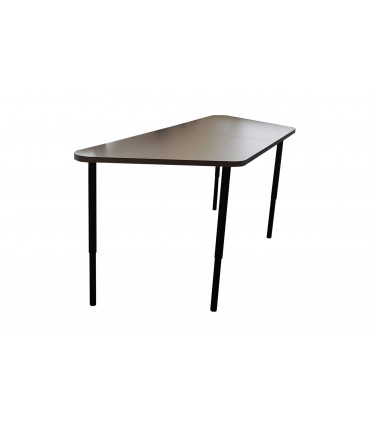

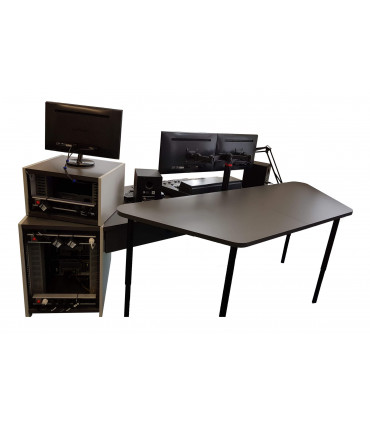

Diffusion table: desk with scratch-resistant surface, 15U side shelf, cylindrical legs, one top shelf (8 or 4U), plus additional guest desk with legs and place for hdp dispenser

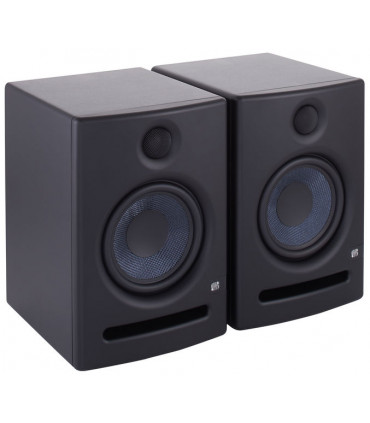

PRESOMUS ERIS 5: Pair of active studio monitors, LF driver: 4.5" (114 mm) Kevlar, HF driver: 1" (25 mm) silk dome, Frequency response: 70 Hz - 20 kHz, Crossover frequency: 2 , 8 kHz, LF amplifier Power: 25 W per speaker, SPL peak (at 1 meter): 100 dB, Input impedance: 10 kOhm

Prewiring in AIR STUDIO including: cables, connectors, interconnection cables (balanced audio cable 100 Mt, cable 100 MPX, Lan cable 100 Mt) and factory test.

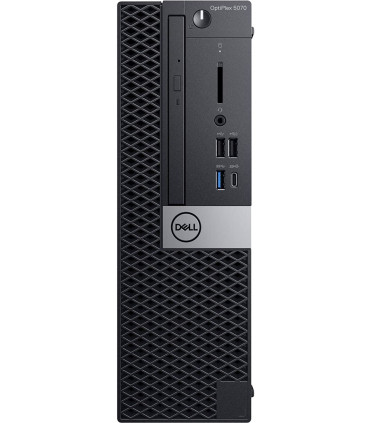

DELL: Computer with Playout Standard SW, library ingest, playlists, adv. management, runtime scheduling, audio editing, instant player recording. PC 4U RK - Win 64 bit i5 8 GB RAM HD SO 250 GB 2X2 TB HD. Sound Card 4 stereo XLR OUT Bal. XLR 4 stereo XLR IN Bal. With cable

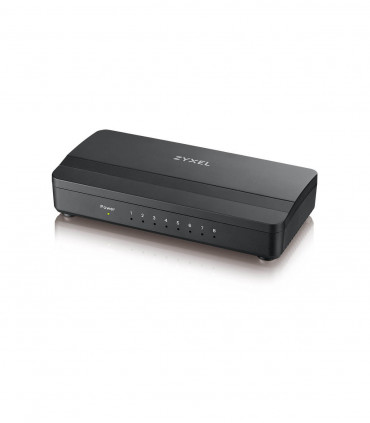

ZYXEL GS-108S: 8-port desktop Gigabit Ethernet multimedia switch for simultaneous connection of multiple multimedia devices to networks with ultra-fast Gigabit speed.
