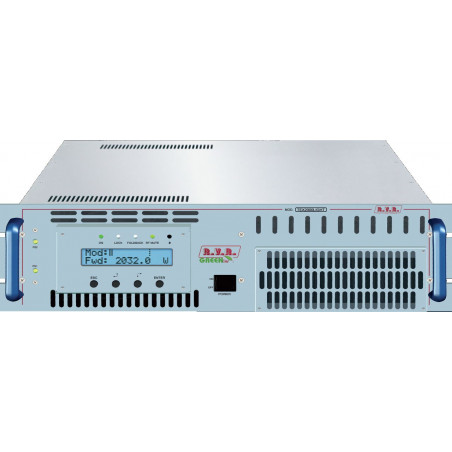

RVR TEX1000LIGHT 1000W - FM Transmitter - Stereo
Transmisor estéreo de 1000 vatios con pantalla LCD, conector RF fuera: 7/16
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
RVR TEX1000/LIGHT Stereo FM Broadcast Transmitter - An afordable FM Transmitter we ship Worldwide at Broadcastmarket.
RVR TEX1000/LIGHT - 1000 watt transmitter specifications:
Rated outpuy power: 1000 W.
Power consumption: 1617 W.
Phisical Dimensions (W x H x D) 483 x 132 x 520 mm
Weight 23 kg
Environmental Working Conditions -10 ¡Â +50 ¡ãC / 95% relative Humidity non condensing
Cooling Forced, with internal fan
Frequency programmability From software, with 10 kHz steps
Frequency stability ¡À1 ppm
Pre-emphasis mode 0/50 (CCIR) ¦ÌS, 75 (FCC) ¦ÌS
Spurious & harmonic suppression <75 dBc (80 typical)
Asynchronous AM S/N ratio ¡Ý60 dB (typical 68)
Synchronous AM S/N ratio ¡Ý50 dB (typical 58)
PRIMARY APPLICATION:
RVR TEX transmitters offer uncompromised transmission quality at a very attractive price. Ideal for use as drivers for mid-power stations or as transmitters in stand-alone applications. Adjustable power output from 0 Watt to maximum output power.
AUDIO PERFORMANCE:
key audio features are low distortion and intermodulation values and a high noise/signal ratio.
HARDWARE FEATURES:
RVR TEX transmitters are compact (525mm depth only) and indeformable thanks to the stainless steel chassis, in 3 rack units only.
SER-FRIENDLY FEATURES:
Universal 80-260 V multi-voltage power supply enables operation on different mains voltages with no need to preselect voltage. Pushbuttons for user/device interaction provide enhanced accessibility, resulting in extreme ease of use. Configuration software offers a simple, intuitive interface.
EASE OF MAINTENANCE:
advanced module engineering ensures extreme ease of access and simple maintenance.
RELIABILITY/CONTINUITY:
the SMD technology ensures enhanced business continuity. APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
INTERFACE CONTROL:
total control thanks to microprocessor easily programmed from menu or via RS232 with all key parameters displayed on LCD.
INPUT/OUTPUT INTERFACE:
built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.
REMOTE CONTROL:
built-in Telemetry System with GSM modem, battery and battery charger (option).
REGULATORY COMPLIANCE:
state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
MONO OPERATION
S/N FM Ratio > 80 dB RMS (typical 83 dB)
Frequency Response < ¡À 0.5 dB 30Hz ¡Â 15kHz (typical ¡À 0.2 dB)
Total Harmonic Distortion < 0.1 % 30 Hz ¡Â 15 kHz (typical 0.07 %)
Intermodulation distortion < 0.02 % with 1 kHz and 1,3 kHz tones
MPX OPERATION
Composite S/N FM Ratio > 80 dB RMS (typical 83 dB)
Frequency Response ¡À 0.2 dB 30Hz ¡Â 53kHz / ¡À 0.5 dB 53kHz ¡Â 100 kHz
Total Harmonic Distortion < 0.1% 30Hz ¡Â 53kHz
Intermodulation distortion < 0.05% with 1 kHz and 1,3 kHz tones
INTERNAL STEREO CODER OPERATION
Stereo S/N FM Ratio > 75 dB RMS (typical 77dB)
Frequency Response ¡À 0.5 dB 30 Hz ¡Â 15 kHz
Total Harmonic Distortion < 0.05% 30 Hz ¡Â 15 kHz
Intermodulation distortion ¡Ü0.03% with 1 kHz and 1,3 kHz tones
Stereo separation > 50 dB 30 Hz ¡Â 15 kHz (typical 55 dB)
AUDIO INPUT CONNECTORS
Left / Right XLR balanced Impedance: 10 k or 600 ohm Level: -13 to +13 dBu
MPX unbalanced/RDS BNC unbalanced Impedance: 10 k or 50 ohm Level: -13 to +13 dBu
SCA/RDS 2 x BNC unbalanced Impedance: 10 k Level: -8 to +13 dBu
OTHER CONNECTORS
RF Output 7/16 inch
RF Monitor BNC (- 30dBr referred to RF output )
Pilot output BNC (1Vpp)
Interlock Input BNC
STANDARD COMPLIANCE
EN 60215:1989
Safety EN60215/A1:1992-07
EN60215/A2:1994-09
EMC
EN 301 489-1 V1.4.1 (2002-08)
EN 301 489-11 V1.2.1 (2002-11)
Radio EN 302 018-2 V1.2.1 (2005-06)""
