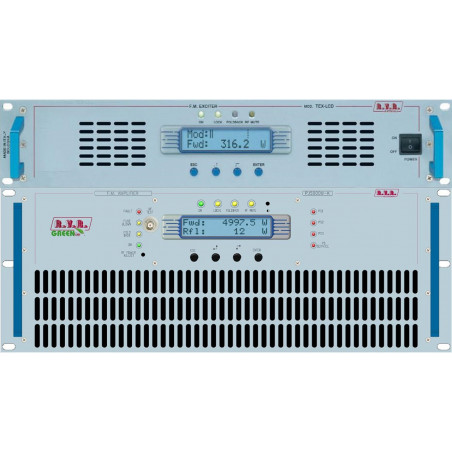

RVR PJ5000U-K+TEX100LCD - Stereo FM transmitter + FM amplifier
100 watt stereo transmitter with LCD-display, RF connector out: N.
Learn More
+
5000 W out / 50-70 W in - 6 HE - FM-Broadband MOSFET Ampl.
Learn More
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Technical specifications TEX100LCD/S:
Rated outputpower - 100 W.
RF connector out: N
Consumption: 212 W
Weight: 8,5 Kg
PRIMARY APPLICATION:
RVR TEX transmitters offer uncompromised transmission quality at a very attractive price. Ideal for use as drivers for small-power stations or as transmitters in stand-alone applications. Adjustable power output from 0 Watt to maximum output power.
HARDWARE FEATURES:
RVR TEX transmitters are compact and light thanks to the stainless steel chassis, in 2 rack units only.
USER-FRIENDLY FEATURES:
universal 80-260 V multi-voltage power supply enables operation on different mains voltages with no need to preselect voltage. Pushbuttons for user/device interaction provide enhanced accessibility, resulting in extreme ease of use. Configuration software offers a simple, intuitive interface.
RELIABILITY/CONTINUITY:
the SMD technology ensures enhanced business continuity. APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
AUDIO PERFORMANCE:
key audio features are low distortion and intermodulation values and a high noise/signal ratio.
EASE OF MAINTENANCE:
advanced module engineering ensures extreme ease of access and simple maintenance.
INTERFACE CONTROL:
total control thanks to microprocessor easily programmed from menu or via RS232 with all key parameters displayed on LCD.
INPUT/OUTPUT INTERFACE:
built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.
RDS APPLICATION:
built-in RDS encoder with standard basic functions (option).
REMOTE CONTROL:
built-in telemetry tystem with GSM modem, battery and battery charger (option).
REGULATORY COMPLIANCE:
state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
PRIMARY APPLICATION:
RVR TEX transmitters offer uncompromised transmission quality at a very attractive price. Ideal for use as drivers for small-power stations or as transmitters in stand-alone applications. Adjustable power output from 0 Watt to maximum output power.
HARDWARE FEATURES:
RVR TEX transmitters are compact and light thanks to the stainless steel chassis, in 2 rack units only.
USER-FRIENDLY FEATURES:
universal 80-260 V multi-voltage power supply enables operation on different mains voltages with no need to preselect voltage. Pushbuttons for user/device interaction provide enhanced accessibility, resulting in extreme ease of use. Configuration software offers a simple, intuitive interface.
RELIABILITY/CONTINUITY:
the SMD technology ensures enhanced business continuity. APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
AUDIO PERFORMANCE:
key audio features are low distortion and intermodulation values and a high noise/signal ratio.
EASE OF MAINTENANCE:
advanced module engineering ensures extreme ease of access and simple maintenance.
INTERFACE CONTROL:
total control thanks to microprocessor easily programmed from menu or via RS232 with all key parameters displayed on LCD.
INPUT/OUTPUT INTERFACE:
built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.
RDS APPLICATION:
built-in RDS encoder with standard basic functions (option).
REMOTE CONTROL:
built-in telemetry tystem with GSM modem, battery and battery charger (option).
REGULATORY COMPLIANCE:
state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
Features PJ5000U-K FM amplifier:
PRIMARY APPLICATION:
uncompromised high amplification power. Ideal to supplement mid to high power stations.
AMPLIFIER FEATURES:
exceptional-gain amplifier with very low input drive power requirement and adjustable power output from 10 to 100. Available (optionally) LD ?Low Drive? technology which reduces required input drive power to as little as 5W.
HARDWARE FEATURES:
easy handling, compact and indeformable thanks to the stainless steel chassis, in 3 rack units each only.
RELIABILITY/CONTINUITY:
APC (Automatic Power Control), Foldback protection, redundancy of amplification units and redudancy of power supply units to mantene always on the broadcast transmission, ensure reliable operation under any operating conditions.
OPERATING EFFICIENCY:
incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
USER-FRIENDLY FEATURES:
configurable both in single and three phase. Five pushbuttons for user/device interaction and software that offers a simple, intuitive interface.
INTERFACE CONTROL:
total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
EASE OF MAINTENANCE:
advanced module engineering ensures extreme ease of access and simple maintenance.
REMOTE CONTROL:
supplied with telemetry connectors and is compatible with all RVR telemetry systems and other popular transmitter remote control systems.
REGULATORY COMPLIANCE:
state-of-the-art technology and design results in equipment that is in full compliance with FCC, CCIR, and EC standards.
Some Specs:
Frequency range: FCC - CCIR - OIRT - JPN - CHIN
Rated Output Power : 5000 W
Environmental working conditions: -10°C to +50 °C / 95% relative Humidity non condensing
AC Power Input: 8000 W
RF Output: 50 ohm (7/8" EIA flange type)
RF Monitor: BNC (50 ohm)
RF Input: 50 ohm (N Type)
Weight about 45 kg
Dimensions LxHxW 483mm x 177mm x 695mm
