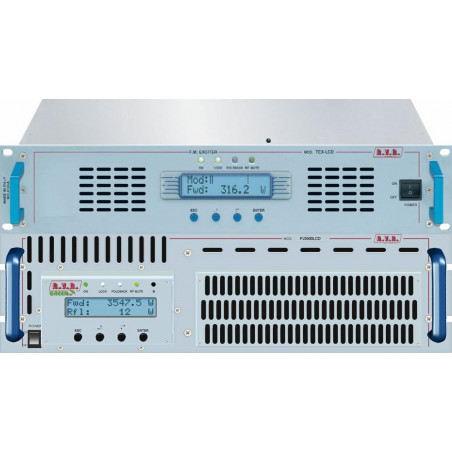

RVR PJ3500LCD + TEX30LCD - Stereo FM transmitter + FM amplifier
30 watt stereo transmitter with LCD-display, RF connector out: N
Learn More
+
3500 W out / 50-70 W in - 6 HE (2 x 3 HE) - PFC FM-Broadband MOSFET Ampl.
Learn More
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Features TEX30LCD - Stereo FM transmitter
PRIMARY APPLICATION: high quality at a very attractive price.Ideal for use as exciters in compact and modular system.
HARDWARE FEATURES: compact, non-deformable and light thanks to the stainless steel chassis, in 2 rack units only.
USER-FRIENDLY FEATURES: universal 80-260 V multi-voltage power supply enables operation without preselect voltage. Four pushbuttons for user/device interaction and software that offers a simple, intuitive interface.
RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.
OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which ensure high efficiency across the bandwidth.
EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.
INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.
RDS APPLICATION: built-in RDS encoder with UECP standard functions (option).
REMOTE CONTROL: built-in telemetry system via GSM modem, battery and battery charger or via WEB or via SNMP (option).
REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
Technical specifications:
Rated Output Power: 30 W. (adjustable 0,3 - 30 Watt)
Power Consumption: 70 W.
GENERAL FEATURES
- Weight: 7 Kg
- Dimensions: 1 Rack Unit (484 x 351 x 44 mm)
- AC Main: 110 / 220 VAC, 50 - 60 Hz
- Consumption: 10 VA
AUDIO INPUT (1 and 2)
- Connector Type: XLR female el. bal.
- Max Input Level: + 20 dBu
- Level adjust: + / - 10 dB
- Impedance: 10 K?
AUDIO OUTPUT
- Connector Type: XLR male el. bal.
- Max Output Level: + 20 dBu
- Ouput Levels: 0, + 6 dBu (internal setting)
- Impedance: 100 K?
'DRAW' OUTPUTS / UNBAL INPUTS
- Connector Type: Pin RCA
- Level: The same as XLR inputs and output
- Purpose: Unbal. mirror of XLR inputs and output
PERFORMANCE
- Linearity: ± 0,1 dB 10 Hz ÷ 100 kHz
- Noise: < - 90 dB (DIN Noise)
- Crosstalk L to R: < - 80 dB @ 1 kHz
AUDIO DETECTING STAGE
- Threshold: Adjustable, - 20 dB ÷ - 60 dB
- Detection delay: From a few seconds to a few minutes
REMOTE CONTROL INTERFACE
- Connector type: DB 25 p female
- Devices: 5 relays, 10 photocouplers
Features RVR PJ3500LCD FM Power Amplifier 3500 Watt:
PRIMARY APPLICATION: uncompromised amplification power at a very attractive price. Ideal for medium power stations.
AMPLIFIER FEATURES: high-gain amplifier with very low input drive power requirement and adjustable power output from 10 to 100 %.
HARDWARE FEATURES: compact and indeformable thanks to the stainless steel chassis, in 3 rack units only.
USER-FRIENDLY FEATURES: four pushbuttons for user/device interaction and software that offers a simple, intuitive interface.
OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
EASE OF MAINTENANCE: advanced module engineering ensures extreme ease of access and simple maintenance.
RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
REMOTE CONTROL: electromechanically controllable and integrable into all digital RVR telemetry systems.
REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
Frequency range: FCC-CCIR-OIRT-JPN-CHN
87.5 MHz to 108 MHz
Rated output power: 3500 W
Rated input for full power - min. 30 Watt (Max. 35 Watt)
AC Power input: Monophase 230VAC +/-15%, Triphase380 VAC 3+N +/-15%.
Consumption: 5000 Watt.
Efficiency: 70%.
Dimensions: 483mm x 132mm x 670mm
Weight: 31 Kg.
RF-Connector out: 7/8" EIA flange type
RF input connector: N-type, 50 Ohm.
